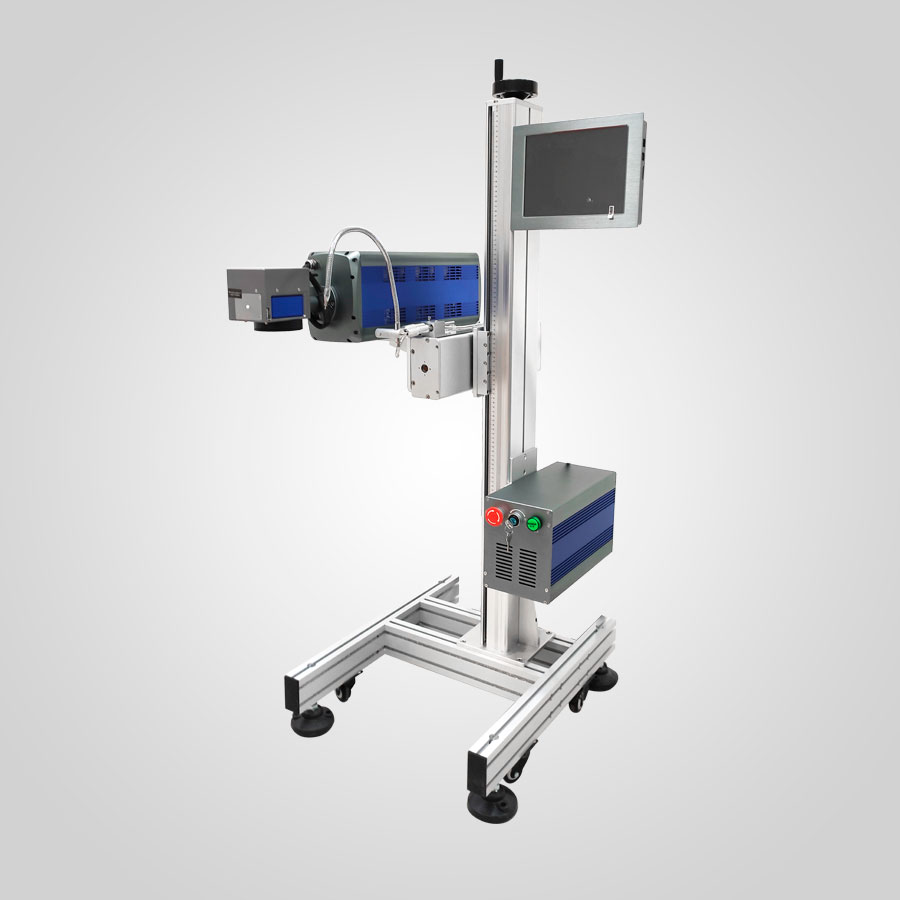

Regresar / Marcadora Laser Co2
-
Marca:
-
Mac-Laser
Descripción:
La G series Co2 es una máquina de marcado laser con una alta velocidad continua, este modelo esta diseñado para proveer una gran productividad con una rápida eficiencia en producción. este modelo esta diseñado para industrias farmacéuticas, empaquetado de alimentos, etc.
-
Color :
-
Gris / Azul
Caracteristicas:
- Laser wavelength 10.55~10.6 um 10.55~10.6 um 10.55~10.6 um 9.3 / 10.2 um 10.55~10.6 um 10.55~10.6 um 10.55~10.6 um
- Pulse frequency 0-25 kHz
- Exit beam diameter 1.8±0.2 mm
- Output power stability ±5%
- Working life About 20,000 working hours (non-lifetime)
- Optical
- properties
- Marking range 100~300mm (range optional)
- Engraving depth
- Engraving speed
- Repeat accuracy ±0.002
- Minimum marking line width 0. 1mm
- Minimum character height 0.15mm
- Environment
- Cooling way Standard built-in air cooling (water cooling can be customized)
- System power supply 500W / 220V / 50Hz (110V can be connected)
- Temperature humidity 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range
- Oil mist, condensation Not allowed
- Other
- parameters
- Operating system Flying laser marking system
- File format The software supports
- Model series G series (DAVI laser source)
- text, QR code, barcode, serial number, graphics and other marking content
- Dimension 660X510X1460 mm
- Packing dimension Host: 980X600X370 mm Column: 1350X350X280 mm
- Total Weight About 63kg
